Load cell amplifier F07A6 load cell amplifier instrument
Features and uses:
1. High performance, multiple digital filtering.
2. Choose one of RS232 or RS485 communication methods.
3. The parameters can be calibrated and modified through the handheld terminal.
4. 6 independent channels.

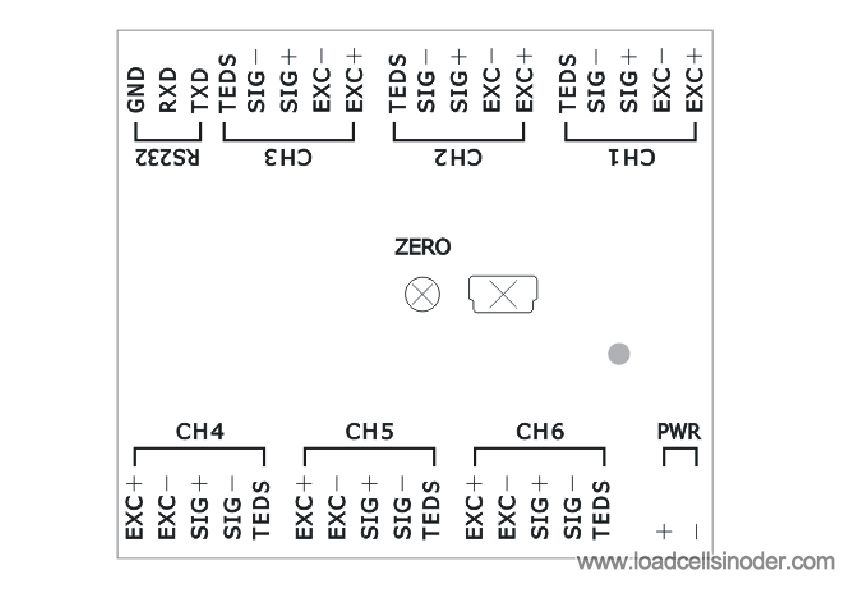

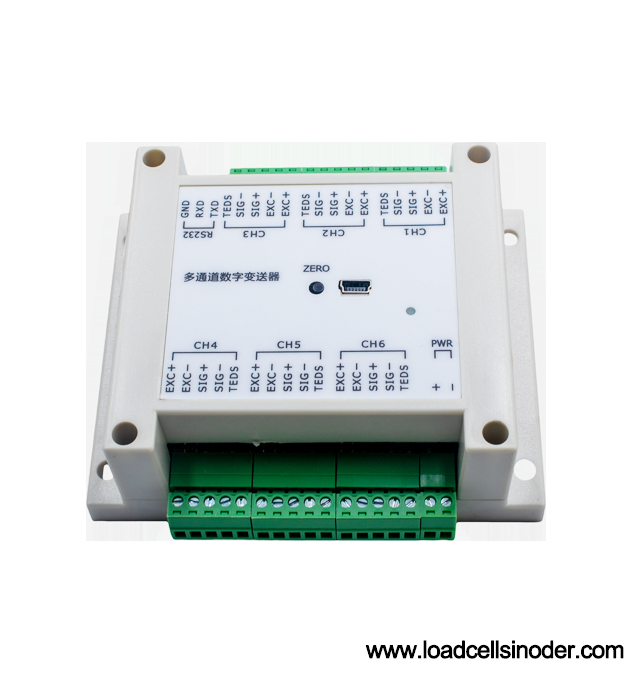

Product appearance and wiring definition diagram:
Specification:The dimensions and parameters marked on this page are conventional technical requirements and are only for selection reference. If you need to know product details or have special technical requirements, please contact us. We can customize them for you.
| 参数 | Specifications | 技术指标/Technique |
| 输入范围 | Output specifications | 0.4~6mV/V |
| 显示精度 | Display accuracy | 1/10000 |
| 传感器激励电压 | Sensor excitation voltage | 5VDC±2%，100mA |
| 电源供给 | Power supply | DC10V--30V |
| 工作温度范围 | Operation temp range | -30~60℃ |
| A/D性能 | A/D Performance | 24位，Delta-Sigma方法 |
| 输出速率 | Output rate | 10，40,640,1280次/秒 |
| 串口通信 | Serial communciation | RS232或RS485二选一（自由协议，Modbus RTU和ASCII协议） |
| 耐电压 | Withstand voltage | 在2000VAC50/60HZ下1分钟 |
| 周围环境 | Surrounding voltage | 温度：-10~55℃;存储-25~65℃ 湿度：35~85%RH;存储35~85%RH |
We also supply complete load cell weighing and force measuring solution plan. Welcome to contact with us!
