S type load cell

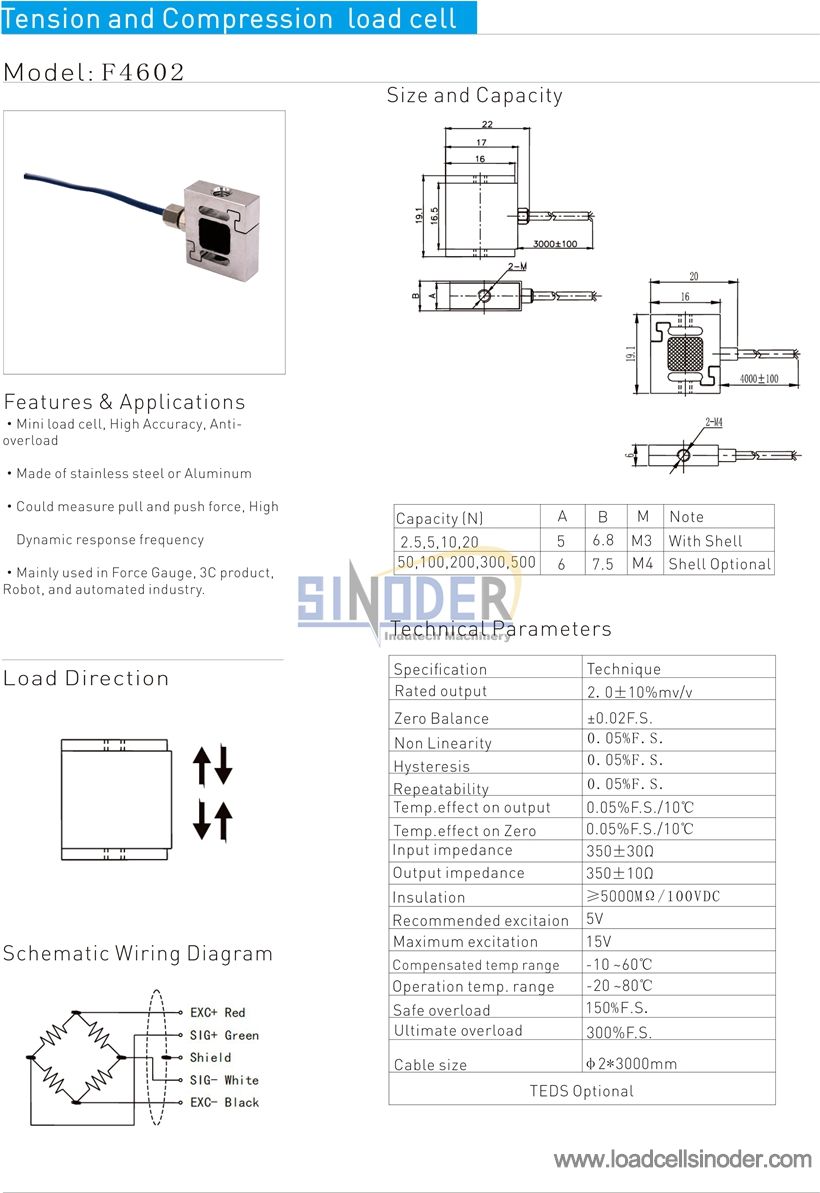

S type load cell F4602 2.5n to 500n
S type load cell F4602 2.5n to 500n·Mini load cell, High Accuracy, Anti-overload
·Made of stainless steel or Aluminum
·Could measure pull and push force, High
Dynamic response frequency
·Mainly used in Force Gauge, 3C product, Robot, and automated industry.
| technical parameters | |
| Specifications | Technique |
| Capacity | 2.5,5,10,20,50,100,200,300,500N |
| Rated output | 2.0±10%mV/V |
| Zero balance | ± 0.02F.S. |
| Non-linearity | 0.05%F.S. |
| Hysteresis | 0.05%F.S. |
| Repeatability | 0.05%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 350±30Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 300%F.S. |
| Cable size | φ2*3m |
| TEDS Optional | |
