Amplifier & Instrumentation
Load cell amplifier Amplifier Transmitter F01A communciation signal amplifier
Features and uses:
1. High-speed, high-precision, multiple digital filters
2. Optional frequency 100HZ or 5000HZ
3. Various signals can output 0~20mA, 4~20mA, 0~±10V, 0~±5V
4. The zero point and full scale can be adjusted.
5. Good stability and strong anti-interference.

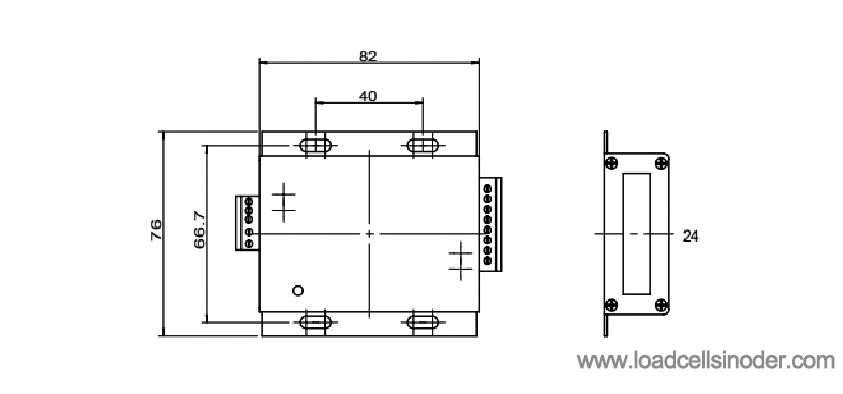

Installation size:
Specification:
The dimensions and parameters marked on this page are conventional technical requirements and are only for selection reference. If you need to know product details or have special technical requirements, please contact us. We can customize them for you.
| 参数 | Specification | 技术指标/Technique |
| 输入范围 | Input Specifications | 0.4~6mV/v |
| 综合精度 | Comprehensive accuracy | ±0.05%F.S. |
| 输入负载 | Input load | 4只350Ω的传感器 |
| 电源供给 | Power supply | 16-30VDC或者12-24VAC |
| 采集频率 | Acquisition frequency | 100H/5000HZ可选 |
| 工作温度 | Operation temp range | -30~60℃ |
| 防护等级 | IP class | IP64 |
| 材料 | Material | Alluminum alloy(铝合金) |
| 输出端口 | Interface | 0~20mA,4~20mA,0~±10V,0~±5V |
We also supply complete load cell weighing and force measuring solution plan. Welcome to contact with us!
