Column load cell
Tension and compression load cell sensor F402 column type load cell
Features and uses:
1. Miniature sensor, stainless steel material, two-way use of tension and compression;2. The principle of high-precision resistance strain gauge is adopted, and the dynamic response frequency is high;
3. The appearance is small and exquisite, and the design of two-end threaded holes is convenient for installation, which can meet the force measurement in the range of 50N-1KN;
4. F402 tension and compression load cell senssor mainly used in areas where installation space is limited, such as automobile press-fitting, automated assembly, 3C product testing, robotic grip, and keyboard feel testing.

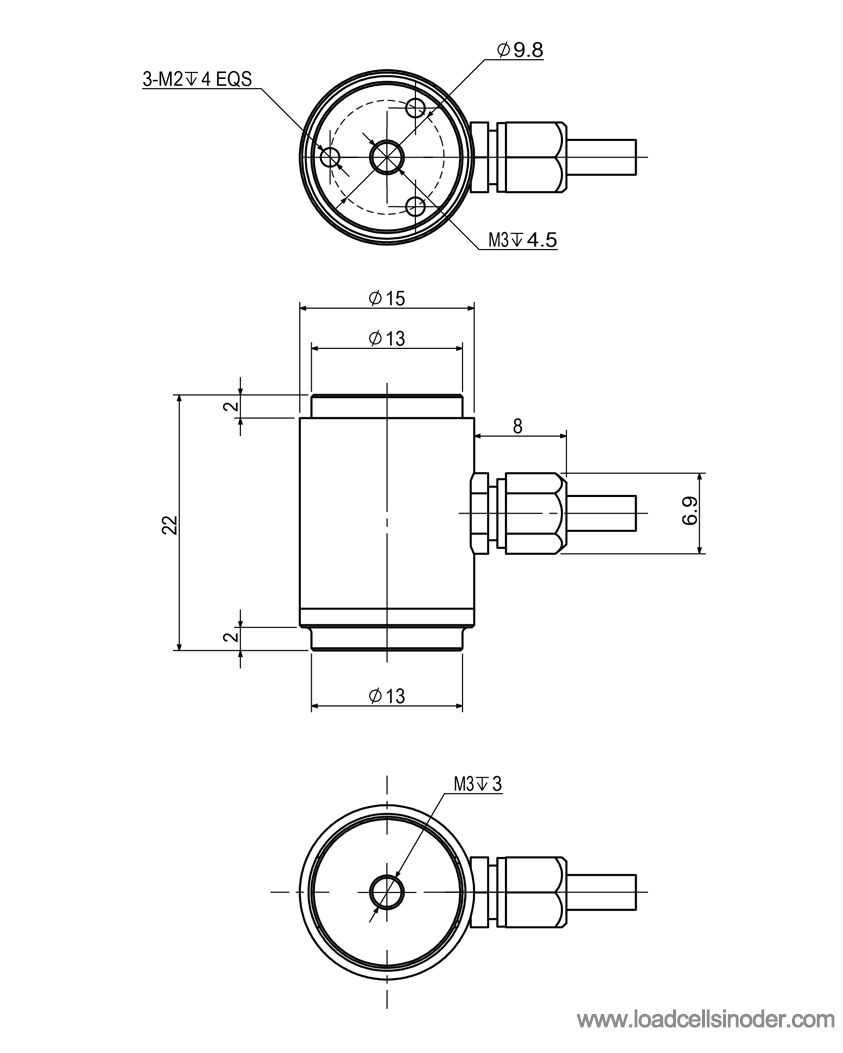

Installation size:
Specification:If you do not find the sensor you want, please contact us. We can customize it according to your size, range, parameters, installation method, etc.
| 参数 | Specifications | 技术指标/Technique |
| 额定量程 | Capacity | 1,2,3,5,10,20,30,50kg |
| 输出灵敏度 | Rated output | 2.0±10%mV/V |
| 零点输出 | Zero balance | ±0.05mV/V |
| 蠕变 | Creep (30min) | ≤0.05%F.S. |
| 非线性 | Non-linearity | ≤0.05%F.S. |
| 滞后 | Hysteresi | ≤0.05%F.S. |
| 重复性 | Repeatability | ≤0.05%F.S. |
| 输入电阻 | Input impedance | 350±5Ω |
| 输出电阻 | Output impedance | 350±5Ω |
| 温度灵敏度漂移 | Temp.effect on output | 0.025%F.S./10℃ |
| 零点温度漂移 | Temp.effect on zero | 0.025%F.S./10℃ |
| 绝缘电阻 | Isulation resistance | ≥500MΩ/100V(DC) |
| 激励电压 | Recommended excitation | 5V |
| 最大激励电压 | Maximum excitation | 15V |
| 温度补偿范围 | Compensated Temp Rang | -10~60℃ |
| 工作温度范围 | Operation Temp Range | -20~80℃ |
| 安全过载 | Safe overload | 150%FS. |
| 极限过载 | Ultimate overload | 200%FS. |
| 电缆线尺寸 | Cable size | ∅2×3000mm |
| 产品重量 | Weight | 0.1kg |
| 材料 | Material | Stainless steel/不锈钢 |

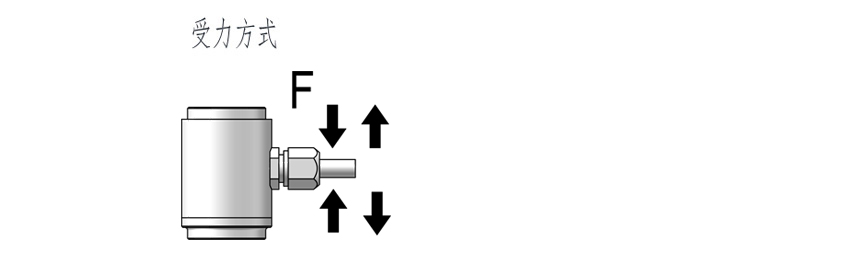

Force method:

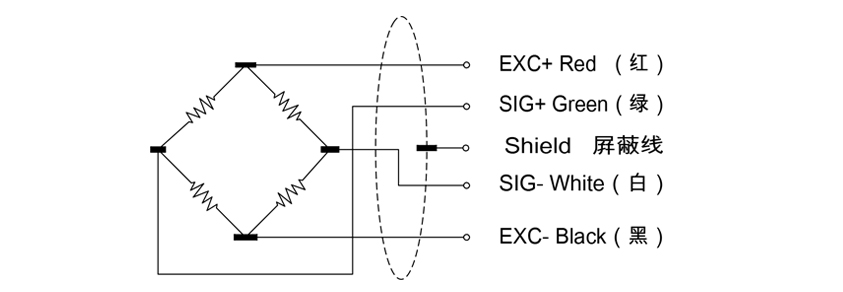

Wiring diagram:
The miniature tension and compression load cell F402 has a mv/V signal output, which can be used with our company's display instrument or amplifier. Can be connected to PLC data acquisition.If you do not find the sensor you want, please contact us. We can customize it according to your size, range, parameters, installation method, etc.
